A stat chart is a simple chart with an icon, that displays one number or data value. Choose from three different stat charts, in multiple styles:
- Donut
- Half-Donut
- Progress Bar
Add a stat chart to your design canvas

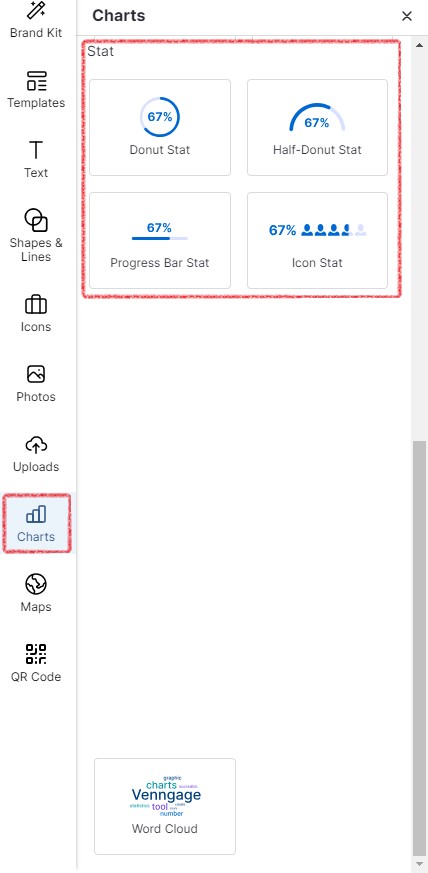

Click on Charts in the left sidebar.
Select a stat chart—choose from our default donut, half-donut and progress bar charts, or select one of our pre-styled designs.
Choose from the following types of stat charts:
Donut chart
Half-donut chart
Progress bar
in many different colors, fonts, visuals and customizable layouts.

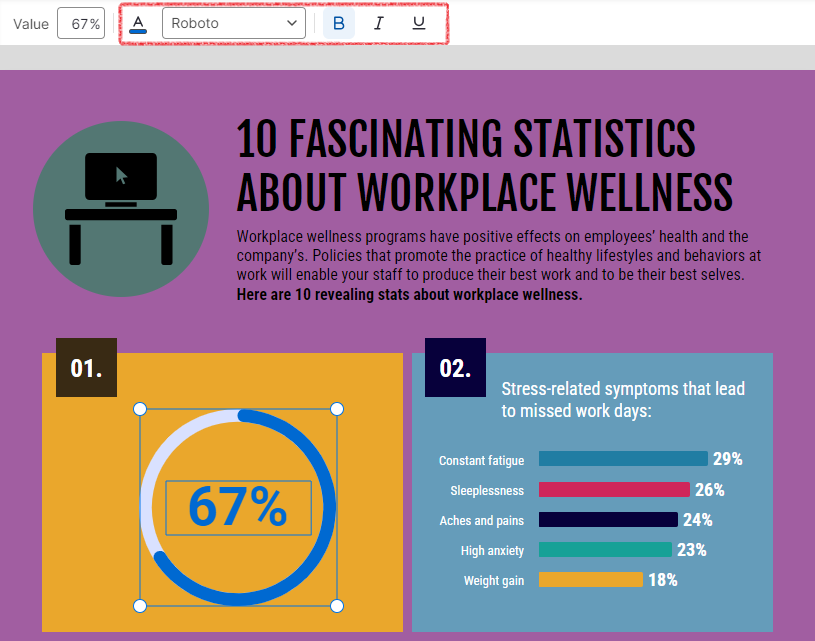

Edit fonts and colors
The fonts and colors for the chart, number, icon, and text can be changed via the top toolbar.
Select the element you want to edit.
Choose the style option you want to change on the top toolbar.
Edit value, widget style, layout, spacing, corner rounding
Double-click the chart. The Edit Chart menu appears.
In the Edit Chart menu, you can change the value displayed in the chart. You can also adjust the style of the widget, including the layout, spacing, and corner rounding.
NOTE: The settings available in the Edit Chart menu varies depending on the chart type. You can change the chart's number by changing the number in the "Value" field.
