Convey meaning in charts using more than just color

Renée Meloche
Renée Meloche
  • Updated
Available on the following Venngage subscription plans: Premium, Business and Enterprise.

Make chart data clearer and more accessible with additional styling techniques, rather than relying on color alone.

Get started: add a chart to your accessible design

Create a chart in an accessible design canvas.

Select or click on "Charts" in the left sidebar to add a chart or table to the design canvas.

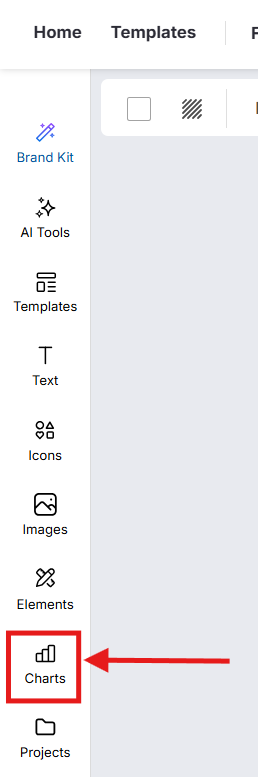

A close-up of the left sidebar, open to the Charts menu (the last icon in the sidebar). Under the heading Charts, Table, Pie, Column and Bar, and Line and Area-type charts are available to add to the design canvas.

Use text labels in addition to a legend

Legends and text labels make data in a chart clearer to readers by making the data more visible and easier to identify.

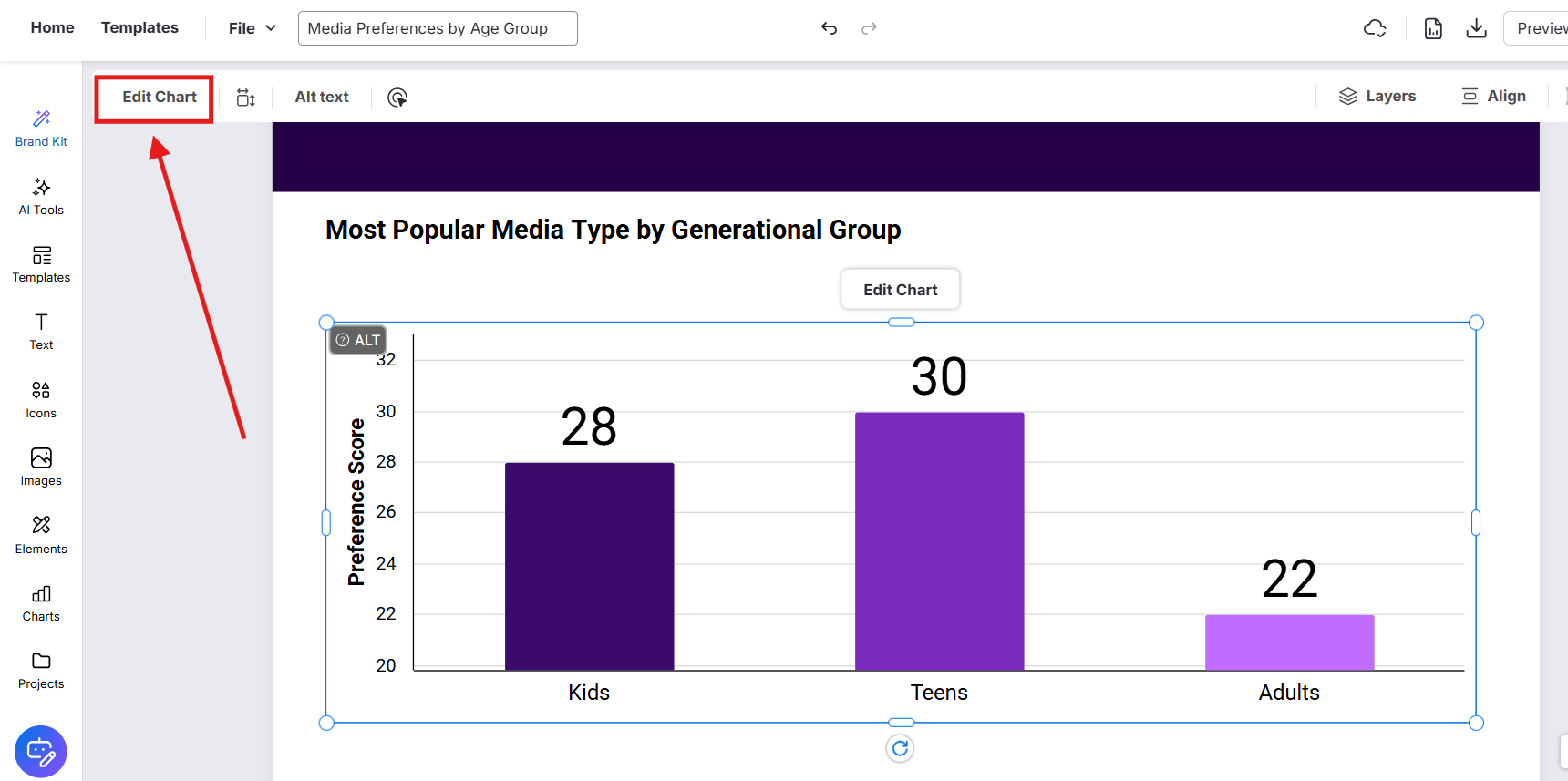

Select or click on the chart to bring up the Edit Chart menu in the top toolbar.

Select or click on Edit Chart to open chart setting options—including Data and Setup—in the right overlay panel.

Select or click the "Setup" tab. Toggle the Legend to ensure that it displays on the chart.

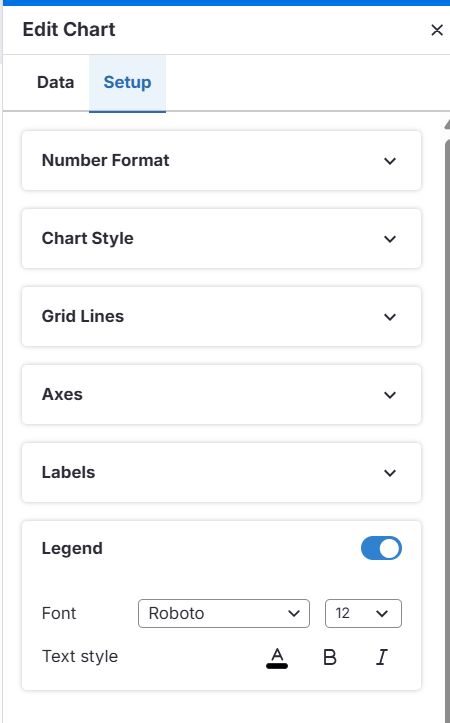

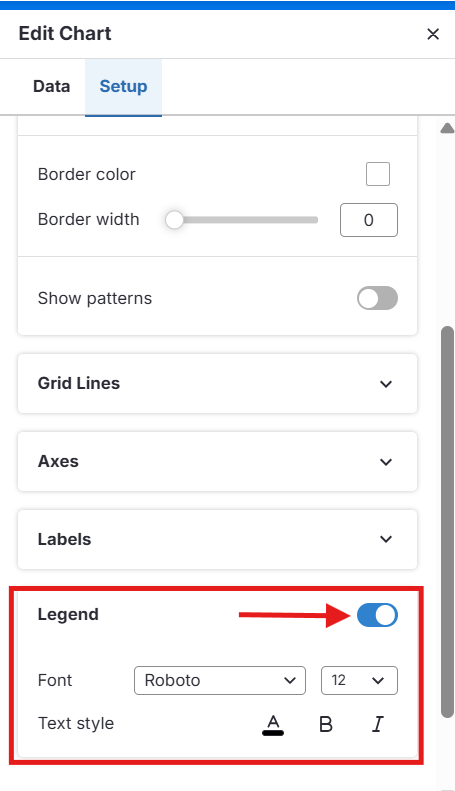

A user selects a chart on a design in the Venngage Editor. The user clicks Edit Chart in the top toolbar, and then clicks the Setup tab. Under the heading 'Legend', the user clicks the toggle. On the design canvas, the legend appears underneath the bar chart.

Use sufficient color contrast

Ensure the color contrast ratio of the labels and other text visible on the chart meets WCAG guidelines as identified by the Contrast Ratio tool in the Venngage Editor.

Select or click on the chart to bring up the Edit Chart menu in the top toolbar.

Select or click on Edit Chart to open chart setting options—including Data and Setup—in the right overlay panel.

Select or click the "Setup" tab.

Change the color of different elements of the chart:

  • Chart style (bar or line colors)

  • Grid lines (background lines visible behind bars

  • Horizontal Axis

  • Vertical Axis

  • Labels

  • Legend text color

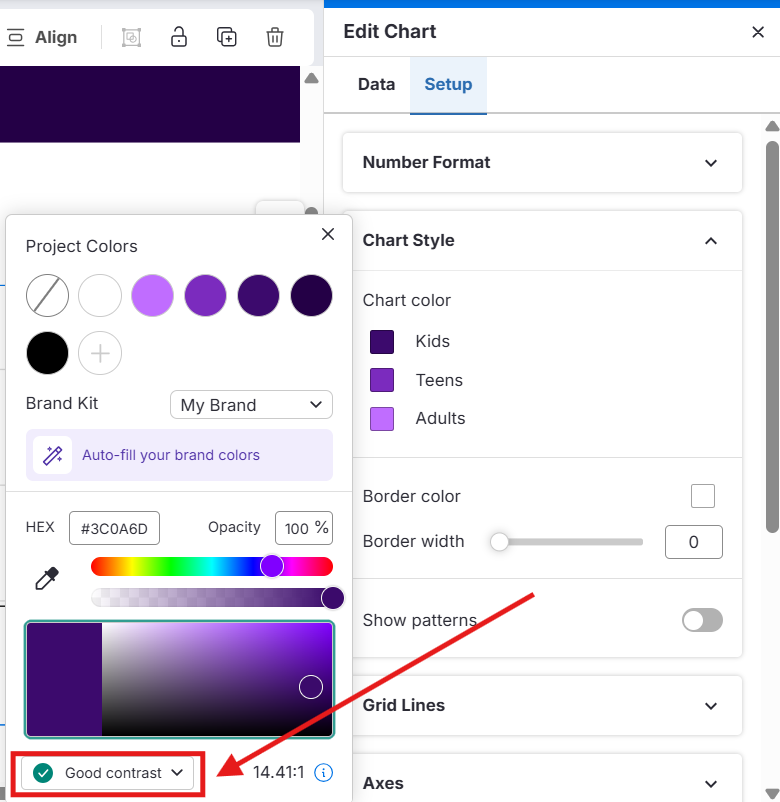

Select or click the color picker square next to the element, and check the Contrast Ratio at the bottom of the color picker menu.

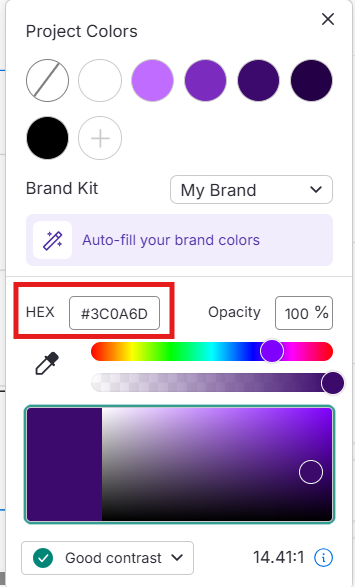

Change the color by clicking into the color picker or typing a hex code into the Hex text field. The Contrast Ratio score will update automatically when the color is changed.

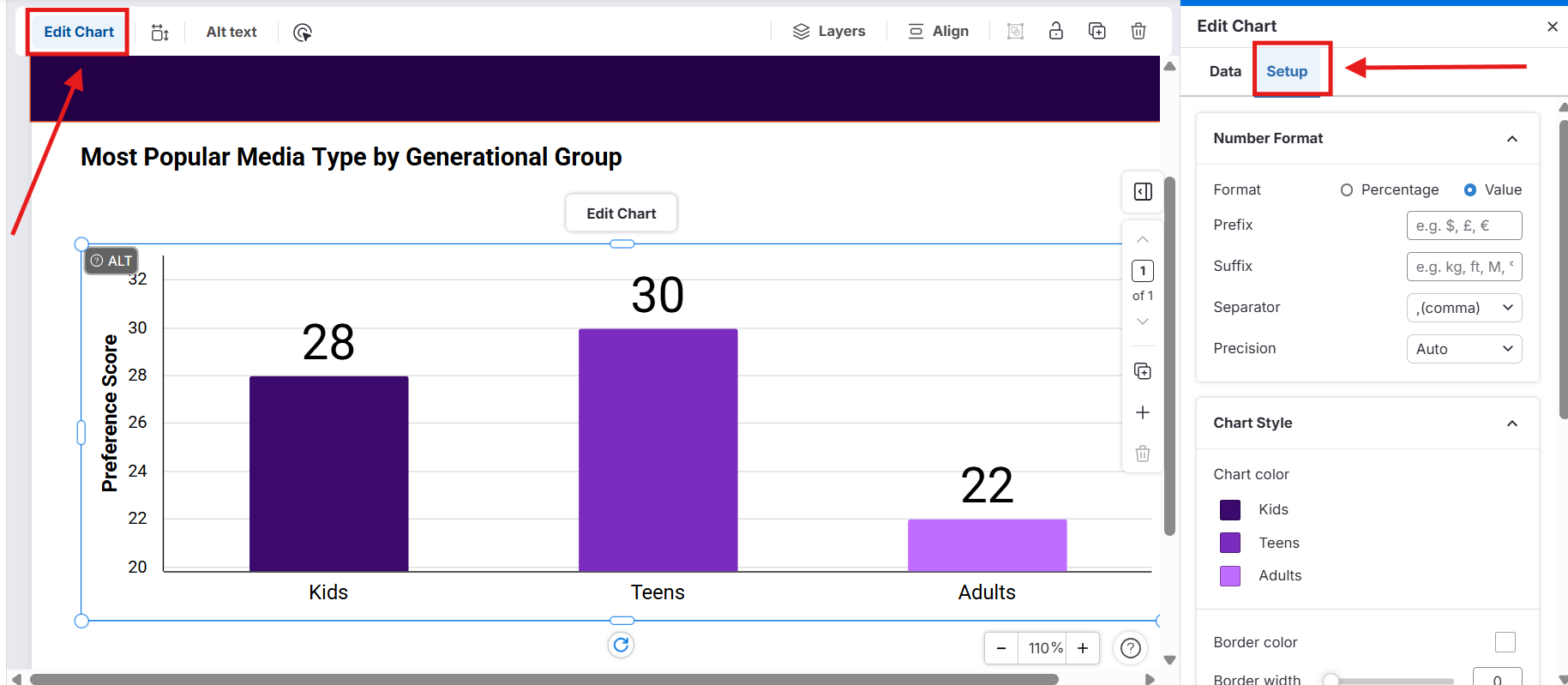

A user selects a chart on a design canvas in the Venngage Editor. The user clicks 'Edit Chart' in the top toolbar, and then clicks the 'Setup' tab. Under the heading 'Labels', the user clicks the color picker. The user clicks a darker color, making the labels on the chart more visible.

Use white space between chart columns

Ensure the spacing between column charts and lines is sufficient to read the text and see the different columns, legend and data labels.

Resize the chart by selecting it with the space bar (keyboard) or clicking on it (mouse) to select it; then use the arrow keys (keyboard) or hold and drag (mouse to change the size.

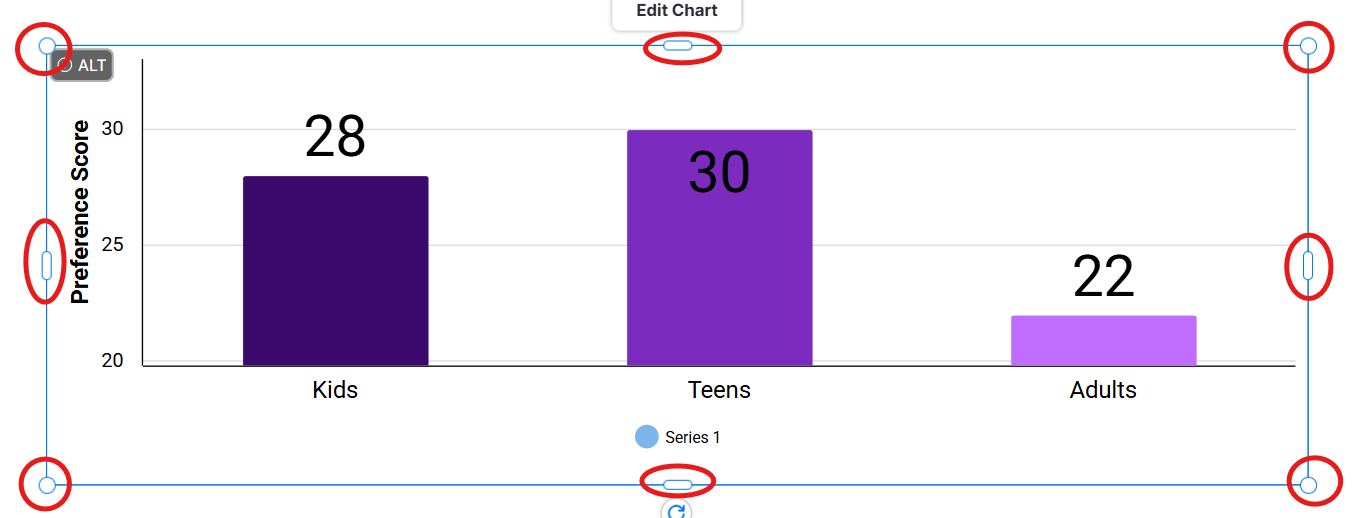

A user clicks on the right side of a bounding box around a selected chart; the user drags the selection box to expand the chart and make it easier to see the content written on it.

Use patterns or icons to differentiate columns or lines

Additional elements like patterns or icons can help make data in a chart clearer for users with additional visual or cognitive accommodation needs. Display patterns to differentiate data, or use icons as data labels in your chart.

A side-by-side of two different charts in a design created in the upgraded Venngage Editor; one is a line chart which has different patterned lines that help distinguish data; the other is a stacked area chart, where the spaces between the different data lines are filled in with different colors and patterns to make them easier to distinguish.

Display patterns to differentiate data

Double-click on a chart in your design or select "Edit Chart" from the top toolbar to add patterns to your chart data.

Select "Setup", the second tab in the Edit Chart pane.

A pie chart appears under the heading 'Budget Report'. The chart has four slices; one is navy blue, one is a light blue, one is a medium teal color and one is a light blue-grey. The user selects the chart and clicks 'Edit Chart' in the top toolbar. In the right-side pane that opens, the user clicks the 'Setup' tab under the Edit Chart tools.

Toggle "Show patterns" to display patterns over the bars, slices or lines in your chart.

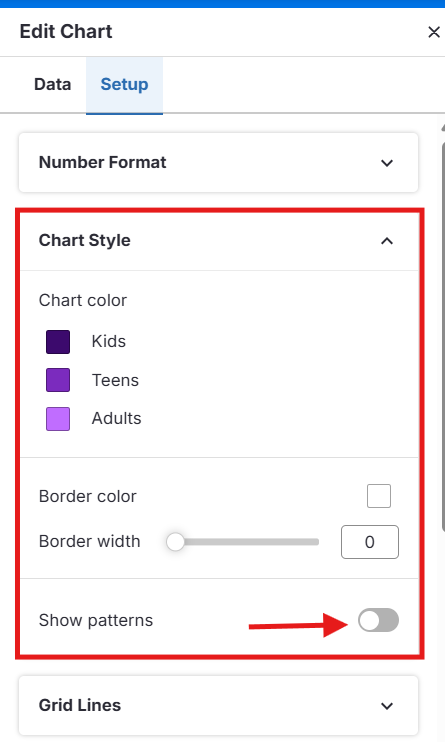

A pie chart appears under the heading 'Budget Report'. The chart has four slices; one is navy blue, one is a light violet, one is a medium teal color and one is a light blue-grey. The user clicks to toggle the 'Show patterns' settings under the Edit Chart tools 'Setup' tab. When 'Show patterns' is toggled on, the four slices on the chart appear in the same colors as described, with an additional pattern, different according to each color (in this case, the navy blue slice appears with a zig-zag pattern overlaying it; the teal slice with diagonal stripes; the grey slice with diagonal stripes oriented in the opposite direction and with greater spacing; the violet slice with a repeating pattern of small cubes).

Patterns are available for all chart types and are particularly helpful for those who have trouble differentiating color.

A column chart appears on the white background of a design canvas. The chart has six columns: three are the same medium blue, two are the same shade of grey; one is a medium teal. The user clicks to toggle the 'Show patterns' settings under the Edit Chart tools 'Setup' tab. When 'Show patterns' is toggled on, the six columns on the chart appear in the same colors as described, with an additional pattern overlaying them. Each column has a different pattern (in this case, the first blue column appears with a diamond pattern; the second blue column appears with a repeating scallop pattern; the third blue column appears with a diagonal stripe pattern; the fourth, grey column appears with a large, repeating chevron pattern; the fifth, grey column appears with vertical stripes; the sixth, teal column appears with horizontal stripes).

NOTE: Chart patterns look best when exported as a PNG or PNG HD. They may not export as shown in the Venngage Editor when downloading or printing to PDF in the Chrome browser (we're working on it!), so for better results when exporting in PDF, we recommend using Firefox.

Use icons as data labels

Select an icon from the menu in the left side bar and place it over or above a column to represent the data points. In the GIF below, a user adds an icon to each of the columns in a column chart, to represent three categories: Films, Video Games, and Books.

A user opens the icons menu in the left sidebar in the Venngage Editor. A column chart is visible on the design canvas in the Editor. The user adds icons from the menu and positions them over each column.

Add alt text to any icons you include in your charts, if they are conveying crucial or additional information that isn't included in the alt text description of the chart.

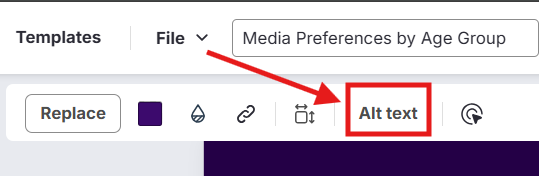

A user adds additional icons to the column chart described above. They describe one of the icons using the Add Alt Text modal (box) in the Venngage Editor.

Describe the data in the chart in the alt text, and you don't need to include the additional visual elements.

In the chart below, "Media Preferences by Age Group", additional icons appear, helping to differentiate the data and make it clearer at a glance. This is helpful for readers with some visual or cognitive impairments, but the icons can be marked as decorative when the alt text describes the data in the chart.

Here's an example of how to write a long alt text description for the chart below:

"Media Preferences by Age Group" column chart. Three groups of columns with three columns in each group represent how many kids, teens and adults identified one category of media as their favorite, when given the choice between video games, films and tv, and books. In the first column group, most (28) kids said they liked films and tv best, followed by video games (24) and the least amount of kids (12) choosing books as their favorite. In the second column group, 30 teens chose video games over films and tv (18) and books (9). Adults, represented in the final column group, tended to prefer books, with 22 identifying those as their preferred form of media; 12 adults identified films and tv as their favorite; and 8 adults said they liked video games the best.

Column chart 'Media Preferences by Age Group', displaying the data described above. In addition, icons appear above each of the columns that match the data category: a video game controller appears above the columns representing 'Video Games'; a segment of film reel with a play arrow appears above the columns representing 'Films and TV' and a stack of books appears above the columns representing 'Books'. Icons above each grouping of columns represent the age category of the respondents: a little girl with curly pigtails above the 'Kids' column group, a boy with braces above the 'Teens' column group, and a woman with glasses and grey hair above the 'Adults' column group.

Note that the description does not include the decorative icons, as they do not convey additional information that isn't captured in the chart data itself. For more insights on what to include or omit, check out our article on writing helpful alt text.
